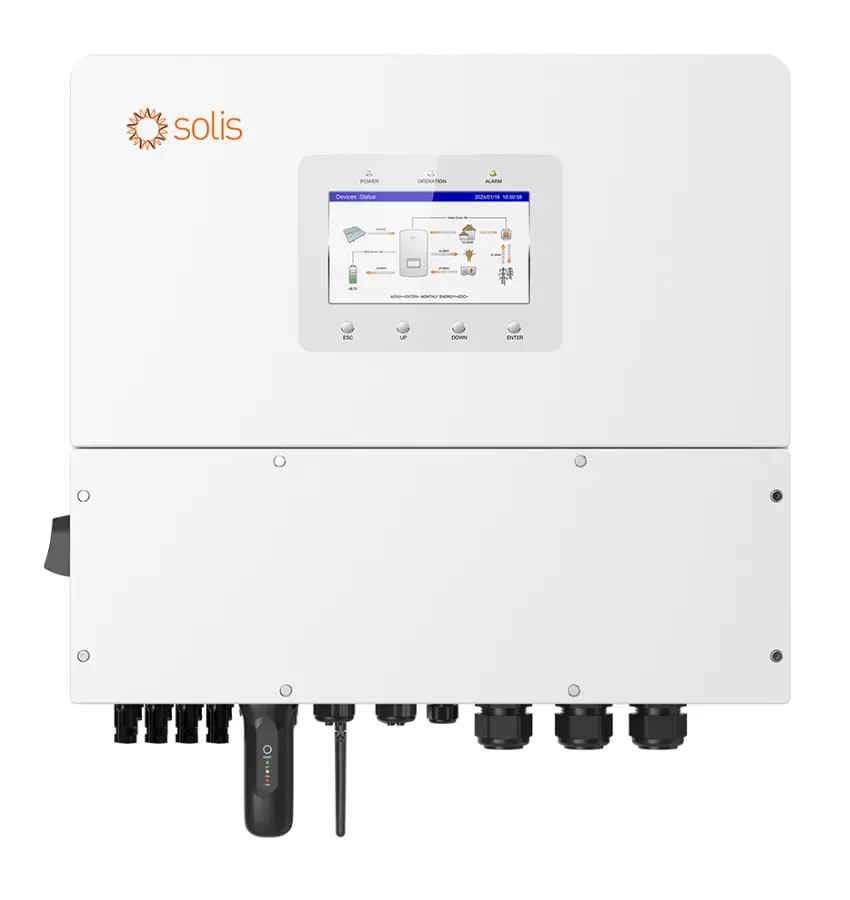

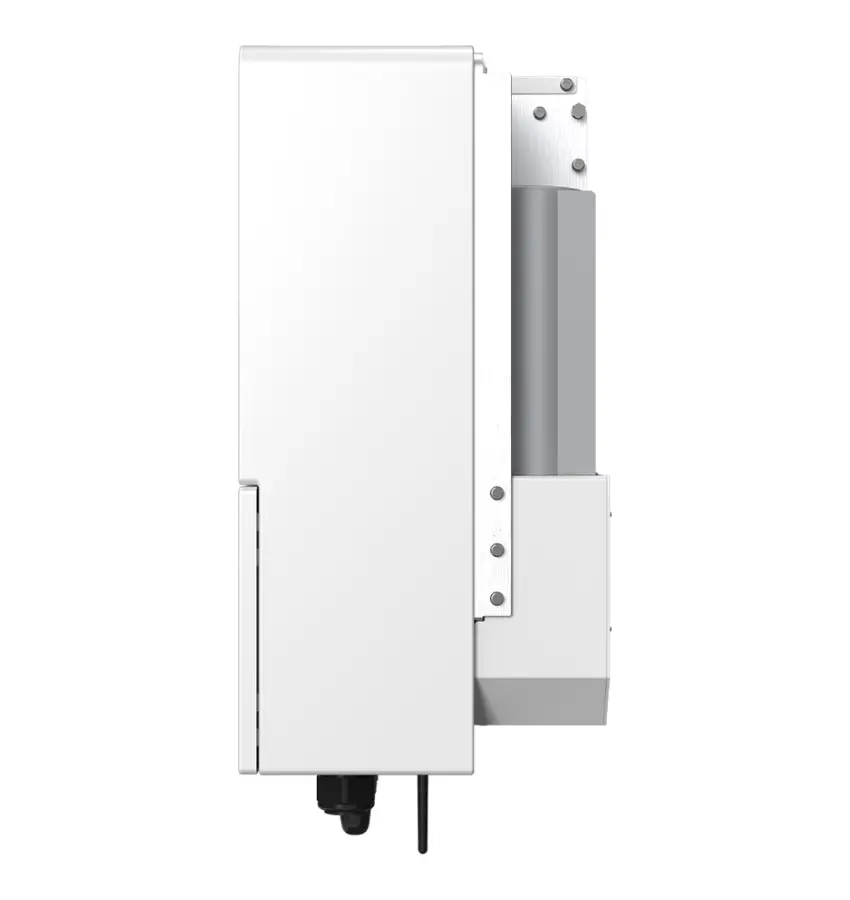

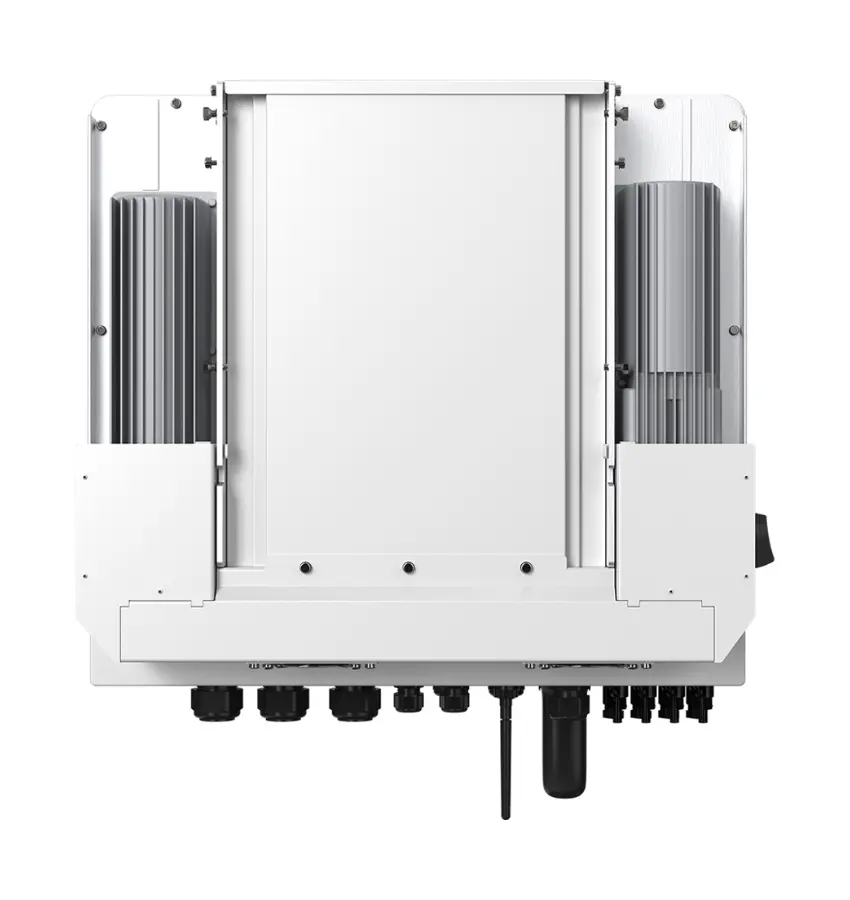

The 12 – 20 kW hybrid inverters (SOLIS) are three-phase, high-voltage energy storage devices designed to provide reliable and efficient use of solar energy in both residential and commercial applications.
They support up to 160% input power, allow the use of unbalanced three-phase outputs and have a fast switchover <10 ms “back-up” function in case of power failure.
Compatible with mainstream lithium batteries, these inverters feature intelligent control via Bluetooth and app, an integrated 7″ LCD display, high energy conversion efficiency and safety. It is a flexible, reliable and future-proof solution for your solar energy system.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Gamintojas | Step |
| Modelis | S6-EH3P12K-H, S6-EH3P15K-H, S6-EH3P20K-H |
| Baterijos tipas | Li-ion (lithium-ion) |
| Įtampa | 1000 V |
| Maks. atiduodama galia | 12 kW, 15 kW, 20 kW |
| Phases | 3 Phase |
| Current | 50 A |
| Back-up funkcija (veikia dingus elektrai) | Yes |
| Apsaugos standartas | IP66 |
| Matmenys | 563 × 546 × 250 mm |
| Svoris | 35,2 kg |
| Montavimo būdas | Wall-mounted |
| Darbinės temperatūros diapazonas | -25° to 60°C |
| Communications | CAN, Ethernet, RS485/P1 |
| Valdymas programėle | Yes |
| Programėlė valdymui | SolisCloud |
| Pagaminimo šalis | China |
| Warranty | 10 m. |
