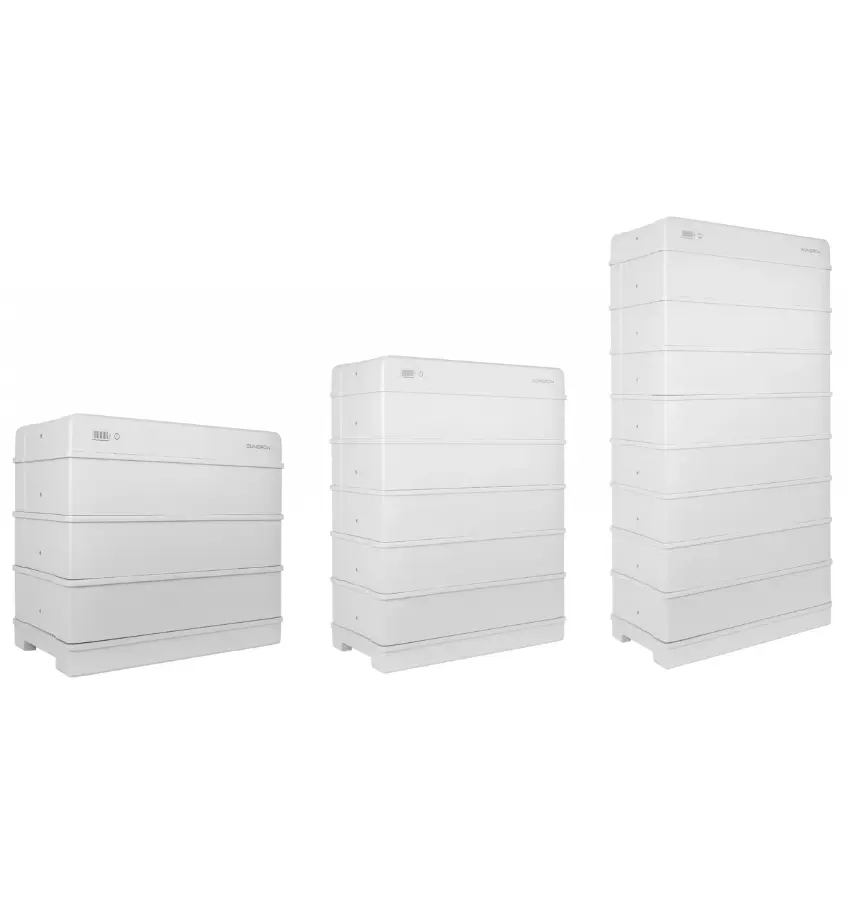

The Sungrow SBR (9.6-25.6 kWh capacity) is a safe, scalable and efficient energy storage solution.
The Sungrow SBR series of high-voltage battery storage devices are designed for efficient energy storage in home and commercial solutions.
The battery uses lithium iron phosphate to achieve up to 100% useful energy recovery and high charge/discharge performance (up to 30 A).
The modular system allows the user to choose from 2 to 8 modules per unit, and expansion is possible even during the lifetime of the system.
Thanks to the Plug & Play installation solutions, it can be installed by one person without additional cables between modules.
The accumulator has a high level protection system (against voltage, current, temperature) and IP55 resistance class.
Compatible with Sungrow inverters (e.g. SHRT series), including back-up power function.
| Gamintojas | Sungrow |
|---|---|
| Modelis | SBR096, SBR128, SBR160, SBR192, SBR224, SBR256 |
| Talpa | 12,8 kWh, 16 kWh, 19,2 kWh, 22,4 kWh, 25,6 kWh, 9,6 kWh |
| Ilgaamžiškumas | up to 6000 charge and discharge cycles |
| Baterijos tipas | LiFePO₄ (Lithium Iron Phosphate) |
| Back-up funkcija (veikia dingus elektrai) | Yes |
| Plėtros galimybė | 2-8 modules per system (up to 25.6 kWh) |
| Montavimo būdas | Built on the ground |
| Matmenys | 625 × 1065 × 330 mm, 625 × 1195 × 330 mm, 625 × 675 × 330 mm, 625 × 805 × 330 mm, 625 × 935 × 330 mm, 625 x 545 x 330 mm |
| Svoris | 114 kg, 147 kg, 180 kg, 213 kg, 246 kg, 279 kg |
| Darbinės temperatūros diapazonas | -20° to 50°C |
| Communications | CAN |
| Valdymas programėle | Yes |
| Programėlė valdymui | iSolarCloud |
| Apsaugos standartas | IP55 |
| Pagaminimo šalis | China |
| Warranty | 10 m. |
