Charging cable 480V – Type2 (32A, 3 phases 22 kW)

Category

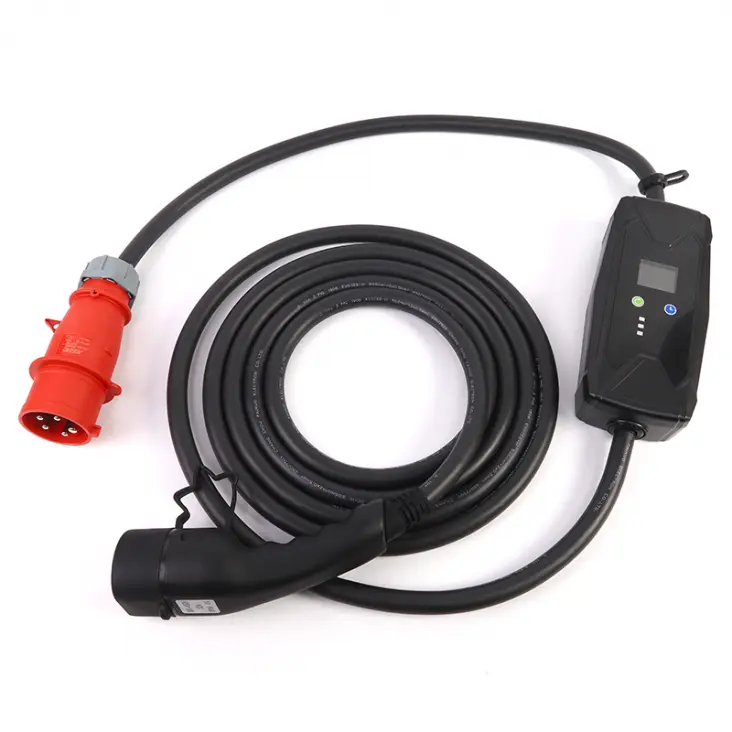

The charging cable from the three-phase socket to the Type 2 connector with 32A current and 3 phases ensures powerful and efficient charging of the electric vehicle at up to 22 kW. It is a reliable and fast solution for both everyday use and long journeys, especially when shorter charging times are needed. The 5 metre cable offers flexibility, allowing you to conveniently connect your electric car in different locations.



The charger is IP54-rated, making it resistant to dust and water splashes, while the contact connectors, made of silver-plated copper alloy and coated with thermoplastic, guarantee efficient energy transfer and long life. The UL94V-0-rated enclosure is fire-resistant, so the cable meets the highest safety standards.

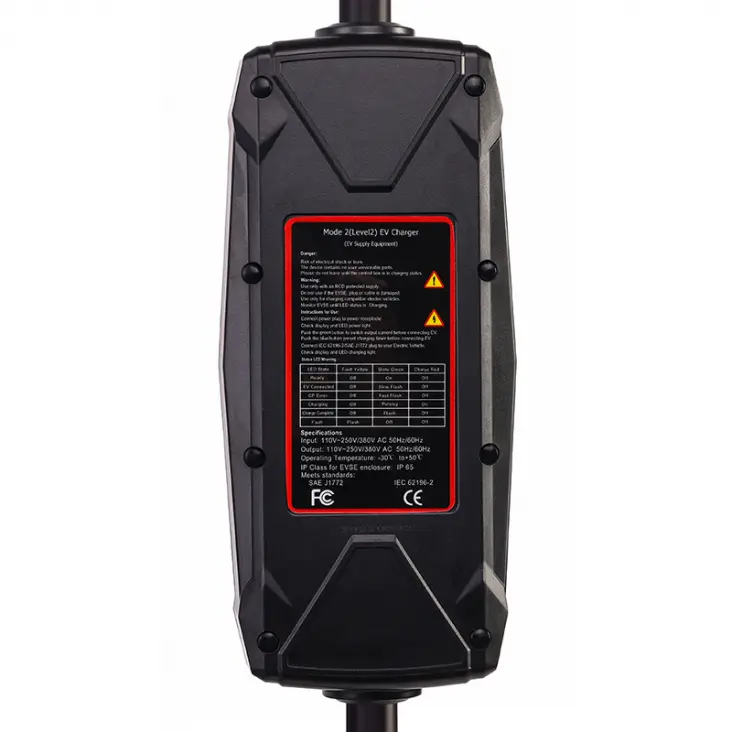

The on-board display allows you to monitor the charging process in real time, displaying parameters such as charging time, power (kW), temperature and electricity consumption (kWh). This allows the user to accurately control and track the charging process.



For maximum safety, the cable is equipped with a comprehensive protection system, including leakage, over-voltage and under-voltage, overload, lightning and overheating protection. If the temperature is too high – above 85 °C – charging automatically stops and only resumes when the temperature drops to 65 °C.



It is a compact yet powerful portable charging solution, ideal for both home and business environments with access to three-phase power.



The Type 2 connector complies with European standards and is compatible with a wide range of EV models such as Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, BMW i3 and others.

395.67

Additional information

Galia

22kW 32A

Kabelio ilgis

5 m

Kabelio tipas

Jungties tipas

Type2

Medžiaga

Copper, Silver, Thermoplastics

Apsaugos standartas

IP54
